$807.00
Quantities and pricing are subject to change and may be subject to a PDI charge
Stock: 2

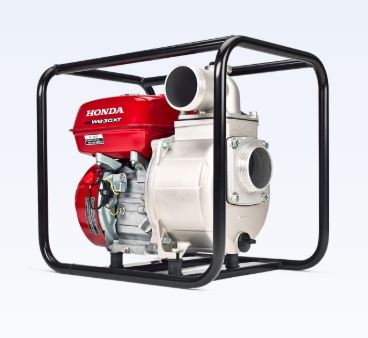

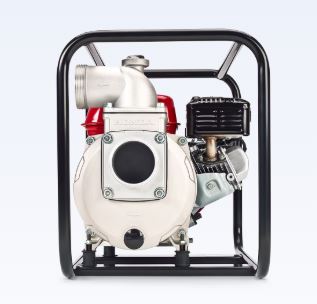

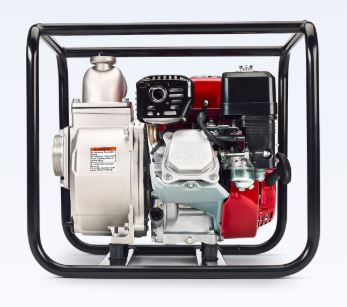

A 80 mm (3 in) pump that offers the best features at a value price. It is used for general de-watering needs including commercial applications.
https://powerequipment.honda.ca/en/pumps/transfer-pumps/models/?trim=wb30xt2c_10380
Call us at 1.866.344.SAWS (7297) for more info.
Contact Woodsman Equipment to check this product's availability.
Commercial-grade engine and heavy-duty, cast iron impeller for more demanding tasks
Moves up to 1,100 litres (242 Imp. gal.) per minute through 80 mm (3 in) suction and discharge ports
Full-frame construction with anti-vibration mounting system helps prevent sinking into soft ground
Standard features include Oil Alert™, tubular steel frame and hose strainer
Water Pump Type
De-watering, general purpose
Pump
Centrifugal
Type
Self-priming
Suction Port Diameter
80 mm (3 in.)
Discharge Port Diameter
80 mm (3 in.)
Litres Per Minute
1,100
Imp. Gal. Per Minute
242
Litres Per Hour
66,000
Imp. Gal. Per Hour
14,520
Total Head
23 m (75.9 ft.)
Suction Head (Total Lift.)
7.5 m (24.6 ft.)
Priming Time @ 5 m (16.4 ft.)
150 seconds
Pump Body
Aluminum
Impeller
Cast iron
Drive Unit Type
Direct coupled/ mechanical seal
Frame Type
Full frame
Engine Type
Honda GX160T2, 4-stroke, OHV, single cylinder
Displacement
163 cc (9.95 CID)
Lubrication System
Forced spray
Governor
Mechanical centrifugal
Starting System
Recoil starter
Fuel Tank Capacity
3.1 L (0.68 Imp. gal.)
Oil Alert
Standard
Length
51 cm (20.1 in.)
Width
38.5 cm (15.2 in.)
Height
45.5 cm (17.9 in.)
Dry Weight
26 kg (57.3 lbs.)
