Description

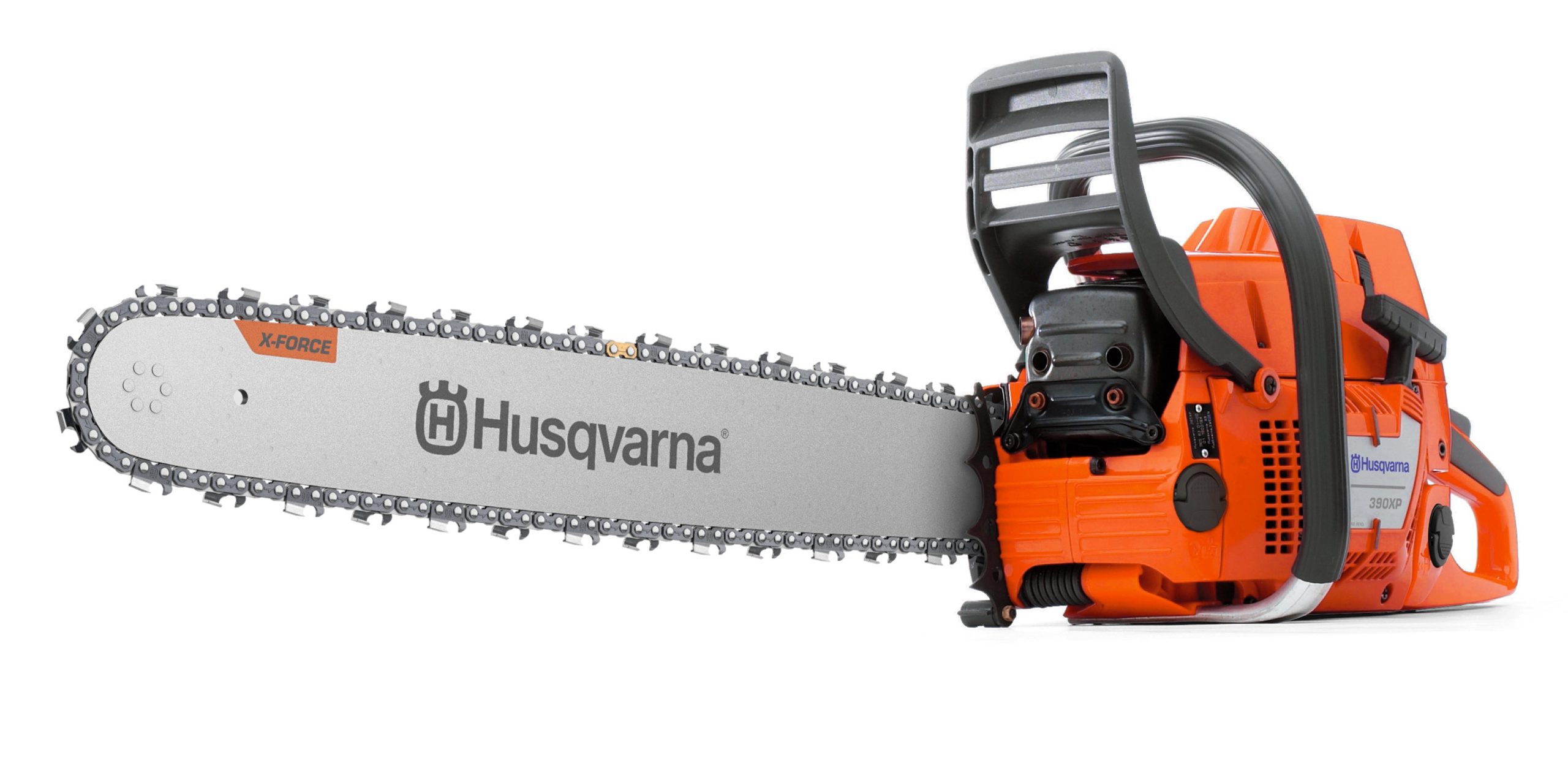

A modern large XP®-saw with a very powerful engine. Performance and vibration damping are dimensioned for sawing jobs that require longer cutting equipment. Good ergonomics and comfort make it easy to handle despite its size and high power. Smart Start® facilitates starting and rubber-mounted carburettor boosts durability and smooths operation.
Power output 4.8 kW
Cylinder displacement 88 cm³
Maximum power speed 9600 rpm
Idling speed 2700 rpm
Torque, max. 4.7 Nm
Fuel consumption 476 g/kWh
Fuel consumption 2.26 kg/h
Spark plug Champion RCJ7Y, NGK BPMR7A
Electrode gap 0.5 mm
Oil pump type Automatic
Bar length (inch) 20″
Recommended bar length, min 45 cm
Recommended bar length, max 70 cm
Chain speed at max power 21.4 m/s
Chain speed at 133% of maximum engine power speed 28.5 m/s
Sprocket type Rim 7
Weight (excl. cutting equipment) 7.3 kg
Oil tank volume 0.5 l
Oil pump type Automatic
Oil pump capacity Max 24 ml/min
Oil pump capacity Min 6 ml/min
Sound power level, guaranteed (LWA) 119 dB(A)
Sound power level, measure 117 dB(A)
Sound pressure level at operators ear 107 dB(A)
Equivalent vibration level (ahv, eq) front handle 6.5 m/s²
Equivalent vibration level (ahv, eq) rear handle 7.5 m/s²
