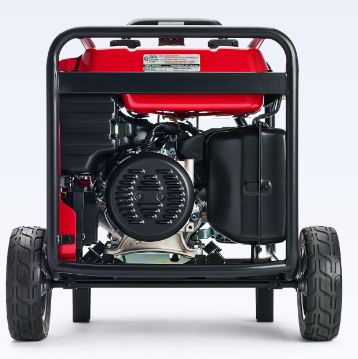

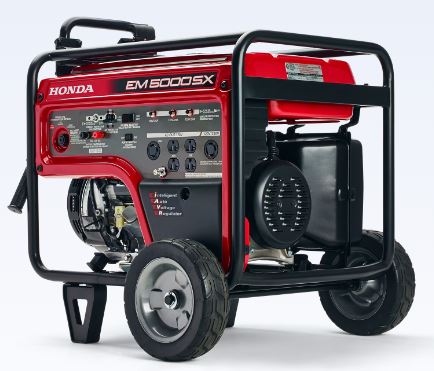

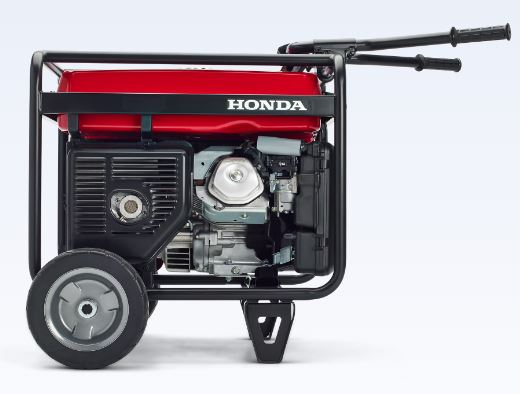

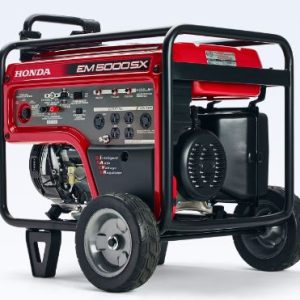

HONDA GENERATOR 5000 WATT ELEC START

$3,186.00

Quantities and pricing are subject to change and may be subject to a PDI charge

Stock: 1

The Electric Start 5000 has premium features for demanding commercial usage (non-GFCI applications) and reliable home backup use.

https://powerequipment.honda.ca/en/generators/work-industrial/models?trim=electric_start_5000_10441

Request Information

  • This field is for validation purposes and should be left unchanged.

Call us at 1.866.344.SAWS (7297) for more info.

Contact Woodsman Equipment to check this product's availability.

SKU: EM5000S3C

Portable power with premium features and traditional Honda durability and performance

5,000 watts maximum AC output

Powerful, easy-start Honda iGX390 commercial-grade engine

Auto-throttle further extends running time by automatically adjusting engine speed to idle when under no load

12 VDC battery charging capability with optional charge cable

Standard wheel kit with positive lock folding handles for easy transportation and convenient, compact storage

Cold Climate TechnologyTM aids continuous running in cold weather conditions

Honda exclusive iAVR (Intelligent Auto Voltage Regulation) system for stable power delivery and available extra wattage (7,000 watts for 10 seconds to start larger equipment)

Voltage Selector Switch allows both 120 V and 240 V output, or total generator output to be available through any of the 120 volt outlets, limited only by the capacity of the individual outlet for powering devices with larger wattage requirements.

Electrical

Generator Type

Brush type

Maximum AC Output (Watts)

5,000

AC Voltage Available

120 / 240

Maximum Continuous AC Output (Watts)

4,500 7,000 (iAVR)

Max. Rated AC Amperage @ 120 V / 240 V

37.5 / 18.8 (58.3 / 29.2 for 10 sec. iAVR)

Ground Fault Circuit Interrupter (GFCI)

N/A

Frequency (Hertz)

60

Automatic Voltage Regulator

Standard iAVR (Intelligent Automatic Voltage Regulator)

DC Output Volts / Amps

12 / 8

Common Duplex Receptacle Specifications

37.5 amps/120 VAC continuous is available as combined total from these twin duplex AC receptacles.

DC Receptacle Specifications

8 amps/12 VDC is available from these +/- thumb screw terminals. Important Note: AC and DC output can be used simultaneously on this series only. DC system uses floating N (Neutral) type.

DC Charging Cable

Optional (P/N 32650-825-015)

High Capacity 120 / 240 VAC Twist Lock Receptacle Specifications

This receptacle (NEMA # L5-30R) will supply 30 amps at 120 VAC continuously. This receptacle (NEMA # L14-30R) will supply 18.8 amps (4.5 kVA) at 240 VAC continuously.

Engine

Engine Type

Honda iGX390T2 OHV, 4-stroke, air-cooled

Displacement

389 cc

Starting System

Electric/recoil

Low Level Oil Alert System

Standard

Auto Throttle

Standard

Remote Start Capability

Optional

Fuel Tank Capacity

23.5 litres (5.17 Imp. gal.)

Additional Information

Transport Wheels

2 Wheel standard

Lifting Hook

Optional (P/N 06810-Z22- A30ZA)

Battery

Standard (P/N 31500-MCR-J01)

Approximate Running Time (hrs.) / Tankful

8.1** / 11.2****

Rated Fuel Consumption (litres/hr)

2.90**

Noise Level dB(A) (1.5 m to 7 m)

72**

Length (Without Handles and Wheels)

681 mm (26.8 in.)

Length (With Handles and Wheels)

1,043 mm (41.1 in.)

Width (Without Handles and Wheels)

530 mm (20.9 in.)

Width (With Handles and Wheels)

706 mm (27.8 in.)

Height (Without Lift-Hook)

“719 mm (28.3 in.)

Height (With Lift-Hook)

773 mm (30.4 in.) optional lift hook

Dry Weight

102.2 kg (225.3 lbs.)

Cold Climate Technology

Standard
