Sale!

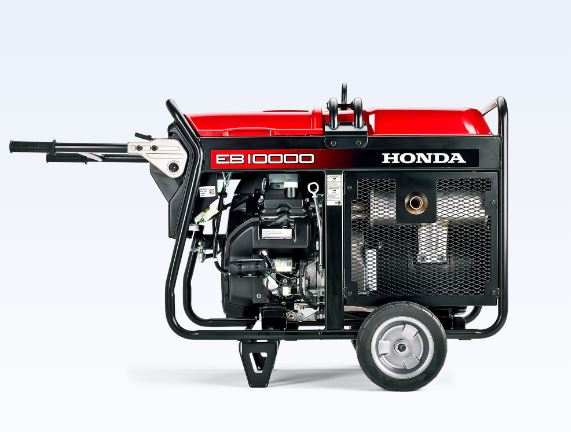

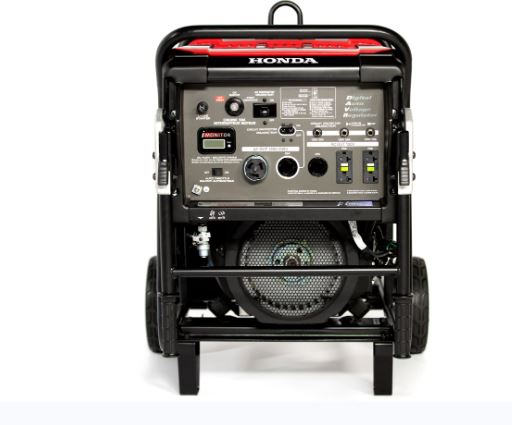

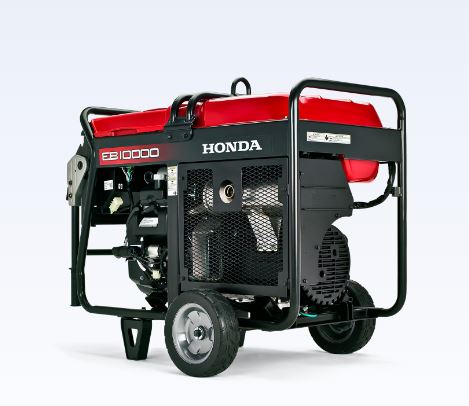

HONDA GENERATOR 10000 WATT ELEC START

Original price was: $6,628.00.Current price is: $6,128.00.

Quantities and pricing are subject to change and may be subject to a PDI charge

Stock: 1

The EB10000C1 is well suited for industrial and commercial applications such as construction. It is also a perfect fit for the rental market, where users demand the most reliable power.

https://powerequipment.honda.ca/en/generators/work-industrial/models?trim=commercial_10000_gfci_es_10446

Request Information

  • This field is for validation purposes and should be left unchanged.

Call us at 1.866.344.SAWS (7297) for more info.

Contact Woodsman Equipment to check this product's availability.

SKU: EB10000C1

10,000 watts of power with dual-voltage configuration and ground fault circuit interrupter (GFCI) protection across all duplex receptacles

Convenient 12 VDC electric start (battery included)

Best fuel efficiency and lowest noise rating in its class

Auto-throttle further extends running time by automatically adjusting engine speed to idle when no load is applied

31-litre fuel tank provides up to 6.5 hours of continuous power at maximum rated output, or up to 8.5 hours at 50% output

Patented frame design that clearly delineates its hot and cool operating parts featuring a narrow-shaped design (control panel positioned on the narrow side of the generator) and a centralized exhaust mechanism

Cold Climate TechnologyTM aids continuous running in cold weather conditions

Hanger kit/lifting eye, wheel kit with folding handle for easier moving around the job site

Electrical

Generator Type

Brush type

Maximum AC Output (Watts)

10,000

AC Voltage Available

120 / 240

Maximum Continuous AC Output (Watts)

9,000

Max. Rated AC Amperage @ 120 V / 240 V

37.5 x 2 (75) / 37.5

Ground Fault Circuit Interrupter (GFCI)

Standard

Frequency (Hertz)

60

Automatic Voltage Regulator

Standard DAVR (Digital Automatic Voltage Regulator)

DC Output Volts / Amps

N/A

Common Duplex Receptacle Specifications

40 amps/120 VAC continuous is available as combined total from these twin duplex AC receptacles. Maximum of 20 amps available from each GFCI duplex receptacle.

DC Receptacle Specifications

N/A

DC Charging Cable

N/A

High Capacity 120 / 240 VAC Twist Lock Receptacle Specifications

This receptacle (NEMA # L5-30R) will supply 30 amps at 120 VAC continuously. This receptacle (NEMA # L14-30R) will supply 30 amps at 120/240 VAC continuously. This receptacle (CS6364/5) will supply 37.5 amps (9 kVA) at 240 VAC or 50 amps (6 kVA) at 120 VA

Engine

Engine Type

Honda GX630H OHV, 90°V-Twin design, 4-stroke, air-cooled

Displacement

688 cc

Starting System

Electric

Low Level Oil Alert System

Standard

Auto Throttle

Standard

Remote Start Capability

No

Fuel Tank Capacity

31 litres (6.82 Imp. gal.)

Additional Information

Transport Wheels

2 Wheel standard

Lifting Hook

Standard

Battery

Standard

Approximate Running Time (hrs.) / Tankful

6.5**

Rated Fuel Consumption (litres/hr)

4.77**

Noise Level dB(A) (1.5 m to 7 m)

72**

Length (Without Handles and Wheels)

973 mm (38.3 in.)

Length (With Handles and Wheels)

1,420/1,041 mm (55.9/50 in.) †

Width (Without Handles and Wheels)

552 mm (21.7 in.)

Width (With Handles and Wheels)

703 mm (27.7 in.)

Height (Without Lift-Hook)

695 mm (27.4 in.)

Height (With Lift-Hook)

891 mm (35.1 in.) standard

Dry Weight

183 kg (403.4 lbs.)

Cold Climate Technology

Standard
